Specifications

A size and shape for every need

One size doesn’t fit all. We know this, that’s why Flexeserve Zone is available in a range of shapes and sizes, as you’ll discover below.

You can select the unit that works for your business, premises and product range, be it a standalone floor unit that sits alongside your fridges – holding a wide range of savoury meals, or a smaller countertop unit filled with pastries.

With features, such as double-stacking, you can achieve a high capacity of stock for the unit’s size and, because Flexeserve Zone creates a consistent temperature throughout each zone, food quality is never compromised.

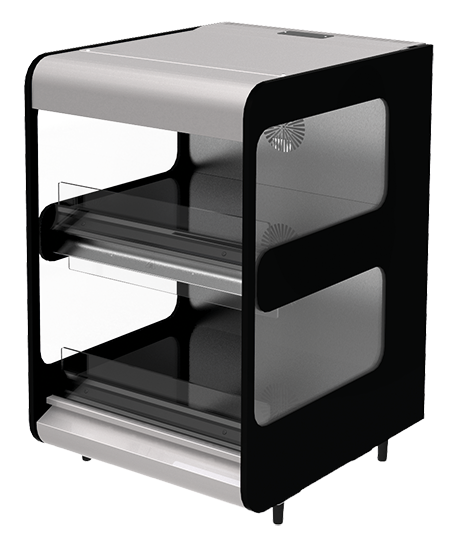

2 Tier – Countertop

MODEL	400	600	1000
MODEL	400	600	1000
HEIGHT	884mm	884mm	884mm
WIDTH	356mm	556mm	975mm
DEPTH	660mm	660mm	660mm
WEIGHT	74kg	86kg	126kg
POWER SUPPLY
UK / EU	16A 1Ph	16A 1Ph	16A 1Ph
ITALY / SWITZERLAND	10A 1 Ph	10A 1 Ph
NORTH AMERICA	Nema 6-15P Plug 1Ph	Nema 6-15P Plug 1Ph	Nema 6-20P Plug 1Ph
AUSTRALIA / NEW ZEALAND	10A 1 Ph	10A 1 Ph	15A 1 Ph
HEIGHT	34.8"	34.8"	34.8"
WIDTH	14"	21.8"	38.3"
DEPTH	26"	26"	26"
WEIGHT	163lb	190lb	278lb
POWER SUPPLY
UK / EU	16A 1Ph	16A 1Ph	16A 1Ph
ITALY / SWITZERLAND	10A 1 Ph	10A 1 Ph
NORTH AMERICA	Nema 6-15P Plug 1Ph	Nema 6-15P Plug 1Ph	Nema 6-15P Plug 1Ph
AUSTRALIA / NEW ZEALAND	10A 1 Ph	10A 1 Ph	15A 1 Ph

Units: Metric Imperial

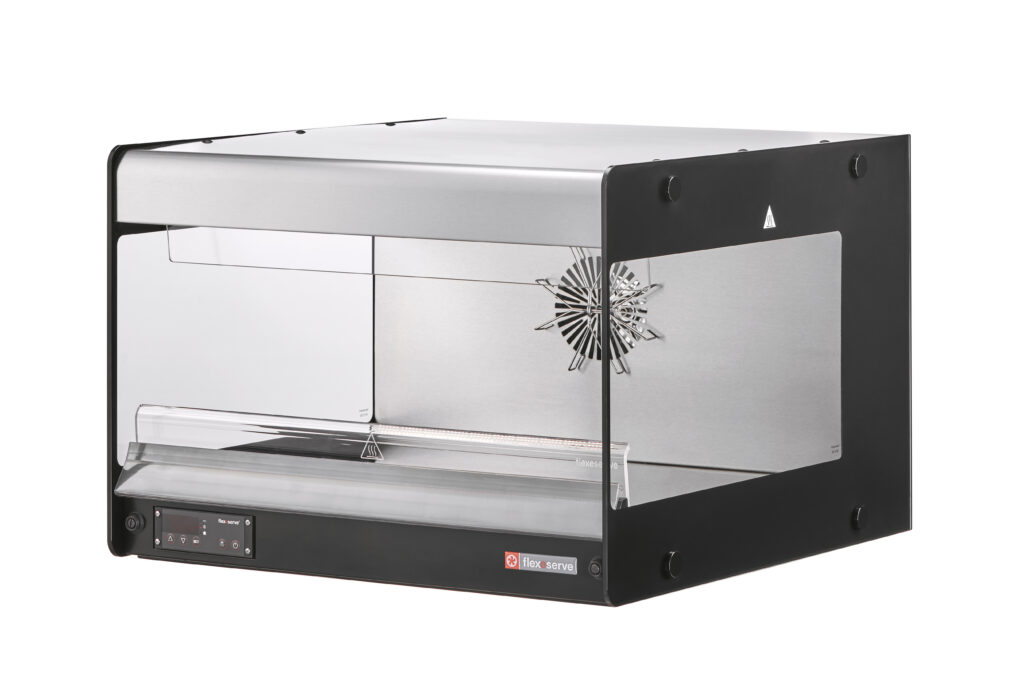

1 Tier – XTRA

MODEL	600	1000
MODEL	600	1000
HEIGHT	646mm	646mm
WIDTH	600mm	1000mm
DEPTH	650mm	650mm
WEIGHT	77.5kg	118.5kg
POWER SUPPLY
UK / EU	13A 1Ph	13A 1Ph
NORTH AMERICA	Nema 6-20P Plug 208V 2 Wire + Ground (1Ph), 60Hz	Nema 6-20P Plug 208V 2 Wire + Ground (1Ph), 60Hz
HEIGHT	25.4"	25.4"
WIDTH	23.6"	39.4"
DEPTH	25.6"	25.6"
WEIGHT	171lb	260.8lb
POWER SUPPLY
UK / EU	13A 1Ph	13A 1Ph
NORTH AMERICA	Nema 6-20P Plug 208V 2 Wire + Ground (1Ph), 60Hz	Nema 6-20P Plug 208V 2 Wire + Ground (1Ph), 60Hz

Units: Metric Imperial

2 Tier – XTRA

MODEL	600	1000
MODEL	600	1000
HEIGHT	1090mm	1090mm
WIDTH	600mm	1000mm
DEPTH	650mm	650mm
WEIGHT	125.5kg	179.5kg
POWER SUPPLY
UK / EU	13A 1Ph	13A 1Ph
NORTH AMERICA	Nema 6-20P Plug 208V 2 Wire + Ground (1Ph), 60Hz	Nema 6-20P Plug 208V 2 Wire + Ground (1Ph), 60Hz
HEIGHT	42.9"	42.9"
WIDTH	23.6"	39.4"
DEPTH	25.6"	25.6"
WEIGHT	276.6lb	395.8lb
POWER SUPPLY
UK / EU	13A 1Ph	13A 1Ph
NORTH AMERICA	Nema 6-20P Plug 208V 2 Wire + Ground (1Ph), 60Hz	Nema 6-20P Plug 208V 2 Wire + Ground (1Ph), 60Hz

Units: Metric Imperial

3 Tier

MODEL	600	1000	600	1000
MODEL	600	1000	600	1000
MODEL TYPE	CURVED	CURVED	SQUARE	SQUARE
HEIGHT	1520mm	1520mm	1520mm	1520mm
WIDTH	556mm	975mm	556mm	975mm
DEPTH	830mm	830mm	855mm	855mm
WEIGHT	145kg	230kg	148kg	237kg
POWER SUPPLY
UK / EU	13A 1Ph / 16A 1Ph	32A 1Ph, 16A 3Ph	13A 1Ph / 16A 1Ph	32A 1Ph,16A 3Ph
NORTH AMERICA	Nema 6-15P Plug 1Ph	Nema 6-30P Plug 1Ph	Nema 6-15P Plug 1Ph	Nema 6-30P Plug 1Ph
AUSTRALIA / NEW ZEALAND	10A 1Ph	32A 1Ph or 16A 3Ph	10A 1Ph	32A 1Ph or 16A 3Ph
MODEL TYPE	CURVED	CURVED	SQUARE	SQUARE
HEIGHT	59.8"	59.8"	59.8"	59.8"
WIDTH	21.8"	38.3"	21.8"	38.3"
DEPTH	32.6"	32.6"	33.6"	33.6"
WEIGHT	320lb	507lb	326lb	522.5lb
POWER SUPPLY
UK / EU	13A 1Ph / 16A 1Ph	32A 1Ph, 16A 3Ph	13A 1Ph / 16A 1Ph	32A 1Ph, 16A 3Ph
NORTH AMERICA	Nema 6-15P Plug 1Ph	Nema 6-30P Plug 1Ph	Nema 6-15P Plug 1Ph	Nema 6-30P Plug 1Ph
AUSTRALIA / NEW ZEALAND	10A 1Ph	32A 1Ph or 16A 3Ph	10A 1Ph	32A 1Ph or 16A 3Ph

ADDITIONAL INFORMATION
*Unit width 356mm/14", overall width 450mm/17.7" to accommodate side wing stabilising brackets fixed to castors.

Units: Metric Imperial

3 Tier – Hi-Line

MODEL	600 SQUARE	1000 SQUARE
HEIGHT	1865mm	1865mm
WIDTH	556mm	975mm
DEPTH	855mm	855mm
WEIGHT	200kg	290kg
POWER SUPPLY
UK / EU	13A 1Ph / 16A 1Ph	32A 1Ph / 16A 3PH
AUSTRALIA / NEW ZEALAND	10A 1PH	20A 1PH or 32A 1PH

4 Tier – Our most popular unit

Extremely versatile, the 4-tier square unit is the most popular unit for mid-size food-to-go outlets. Fitting into a variety of locations and aligning with fridge units, the 4 tiers enable an even split of full day part menu items.

MODEL	600	1000	600	1000
MODEL	600	1000	600	1000
MODEL TYPE	CURVED	CURVED	SQUARE	SQUARE
HEIGHT	1865mm	1865mm	1865mm	1865mm
WIDTH	556mm	975mm	556mm	975mm
DEPTH	865mm	865mm	855mm	855mm
WEIGHT	210kg	292Kg	213kg	295kg
POWER SUPPLY
UK / EU	16A 1Ph	32A 1Ph, 16A 3Ph	16A 1Ph	32A 1Ph, 16A 3Ph
NORTH AMERICA	Nema 6-20P Plug 1Ph	Nema 6-30P Plug 1Ph	Nema 6-20P Plug 1Ph	Nema 6-30P Plug 1Ph
AUSTRALIA / NEW ZEALAND	15A 1Ph	32A 1Ph or 16A 3Ph	15A 1Ph	32A 1Ph or 16A 3Ph
MODEL TYPE	CURVED	CURVED	SQUARE	SQUARE
HEIGHT	73.4"	73.4"	73.4"	73.4"
WIDTH	21.8"	38.3"	21.8"	38.3"
DEPTH	34"	34"	33.6"	33.6"
WEIGHT	462.9lb	643.7lb	469.5lb	650.3lb
POWER SUPPLY
UK / EU	16A 1Ph	32A 1Ph, 16A 3Ph	16A 1Ph	32A 1Ph, 16A 3Ph
NORTH AMERICA	Nema 6-20P Plug 1Ph	Nema 6-30P Plug 1Ph	Nema 6-20P Plug 1Ph	Nema 6-30P Plug 1Ph
AUSTRALIA / NEW ZEALAND	15A 1Ph	32A 1Ph or 16A 3Ph	15A 1Ph	32A 1Ph or 16A 3Ph

ADDITIONAL INFORMATION
*Unit width 356mm/14", overall width 450mm/17.7" to accommodate side wing stabilising brackets fixed to castors.

Units: Metric Imperial

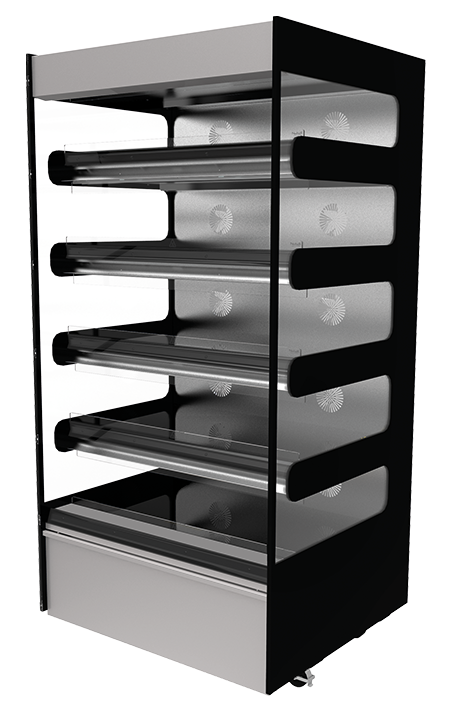

5 Tier

MODEL	600	1000	600	1000
MODEL	600	1000	600	1000
MODEL TYPE	CURVED	CURVED	SQUARE	SQUARE
HEIGHT	1970mm	1970mm	1970mm	1970mm
WIDTH	556mm	975mm	556mm	975mm
DEPTH	873mm	873mm	855mm	855mm
WEIGHT	220kg	295kg	223kg	298kg
POWER SUPPLY
UK / EU	16A 1Ph	32A 1Ph, 16A 3Ph	16A 1Ph	32A 1Ph, 16A 3Ph
NORTH AMERICA	Nema 6-15P Plug 1Ph	Nema 6-30P Plug 1Ph	Nema 6-15P Plug 1Ph	Nema 6-30P Plug 1Ph
AUSTRALIA / NEW ZEALAND	15A 1Ph	32A 1Ph or 16A 3Ph	15A 1Ph	32A 1Ph or 16A 3Ph
MODEL TYPE	CURVED	CURVED	SQUARE	SQUARE
HEIGHT	77.5"	77.5"	77.5"	77.5"
WIDTH	21.8"	38.3"	21.8"	38.3"
DEPTH	34.3"	34.3"	33.6"	33.6"
WEIGHT	485lb	650.5lb	491.5lb	656.9lb
POWER SUPPLY
UK / EU	16A 1Ph	32A 1Ph, 16A 3Ph	16A 1Ph	32A 1Ph, 16A 3Ph
NORTH AMERICA	Nema 6-15P Plug 1Ph	Nema 6-30P Plug 1Ph	Nema 6-15P Plug 1Ph	Nema 6-30P Plug 1Ph
AUSTRALIA / NEW ZEALAND	15A 1Ph	32A 1Ph or 16A 3Ph	15A 1Ph	32A 1Ph or 16A 3Ph

Units: Metric Imperial

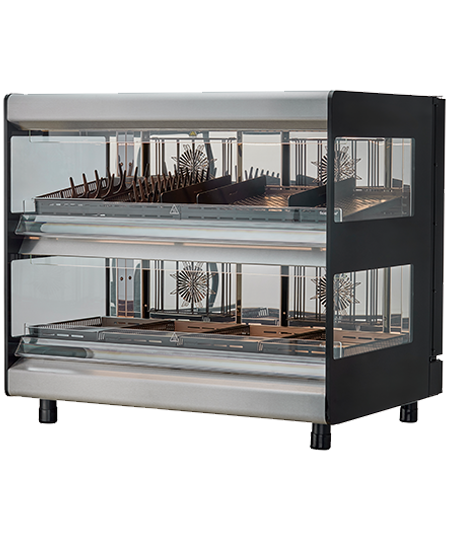

2 Tier – Countertop Rear Feed

MODEL	600	1000
MODEL	600	1000
HEIGHT	910mm	910mm
WIDTH	600mm	1000mm
DEPTH	712mm	712mm
WEIGHT	100kg	153kg
POWER SUPPLY
	13A 1Ph	16A 1Ph
HEIGHT	35.8"	35.8"
WIDTH	23.6"	39.3"
DEPTH	28.0"	28.0"
WEIGHT	220.5lb	337.3lb
POWER SUPPLY
	13A 1Ph	16A 1Ph

Units: Metric Imperial

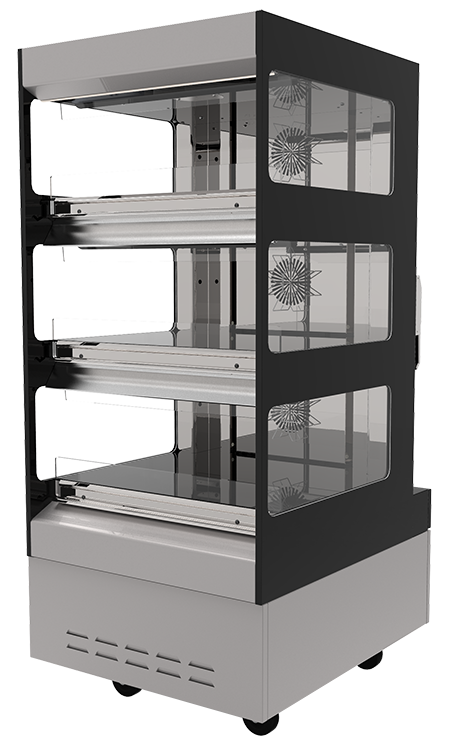

3 Tier – Floor Standing Rear Feed

Model	600	1000
Model	600	1000
HEIGHT	1380mm	1380mm
WIDTH	600mm	1000mm
DEPTH	712mm	712mm
WEIGHT	166kg	245kg
HEIGHT	54.3"	54.3"
WIDTH	23.6"	39.3"
DEPTH	28"	28"
WEIGHT	365.9lb	540.1lb

ELECTRICAL INFORMATION
3 Tier Counter 600 - 16AMP Commando Single Phase
3 Tier Counter 1000 - 32AMP Commando Single Phase / 16AMP Commando Triple Phase

Units: Metric Imperial

4 Tier – Floor Standing Rear Feed

Model	600	1000
Model	600	1000
HEIGHT	1907mm	1907mm
WIDTH	600mm	1000mm
DEPTH	884mm	884mm
WEIGHT	228kg	372kg
HEIGHT	75.1"	75.1"
WIDTH	23.6"	39.3"
DEPTH	34.8"	34.8"
WEIGHT	502.6lb	820.1lb

ELECTRICAL INFORMATION
4 Tier 600 - 16AMP Commando Single Phase
4 Tier 1000 -32AMP Commando Single Phase / 16AMP Cammando Triple Phase

Units: Metric Imperial
